4. IP 헤더 출력 구현
네트워크 계층에 운영되는 IP 프로토콜에는 목적지 위치를 알려주는 고유한 32비트주소 값이 있으며 이를 IP주소라고 한다.
IP 헤더는 이더넷헤더 다음에 오게된다.
IP헤더에 사용되는 필드
1) Version : IP 버전
2) Header Length : 헤더 길이 정보를 담고 있으며, 단 마지막 필드인 Options 값에 따라 길이가 가변적일 수 있다. 단위는 32비트워드 단위이며, 최소 5에서 최대 15가 될 수 있다.
최소 5인 경우는 고정크기 20바이트(바이트기준 32/8 = 4가 된다. 고로 5로 표기된 경우는 5 *4 = 20바이트를 의미한다.)를 가지며 최대 15인 경우에는 헤더길이가 60바이트가 된다.
3) Type Of Service : 서비스 종류를 나타내며, 왼쪽의 3비트는 우선권 필드 이며 다음 3비트는 플래그 비트를 나타낸다. 우선권 필드는 000에서 111번가지 7개를 사용하여 우선권을 정의할 수 있다. 플래그 비트는 D(Delay), T(Throughput), R(Reliability)로 라우터가 사용하는 정보이나 현재는 사용하지 않고 있다.
4) Total Length : 헤더와 데이터의 길이를 합한 값이며 최대 65,535바이트가 사용 될 수 있다.
5) Identification : 전송할 최대 사이즈를 초과하여 분할된 경우, 분할되기 전, 어떤 패킷에 속한 것인지를 구분하기 위한 고유번호가 할당, 즉 동일한 패키에서 분할된 패킷들은 동일한 ID 값을 가진다.
6) Flag : 분할된 추가 패킷이 있다는 것을 알려주며, 해당 정보를 바탕으로 수신측에서는 재조합을 통해 원래의 패킷으로 구성한다.
- 0비트 : 예약 필드로 무저건 0으로 세팅되어야 한다.
- 1비트 : DF(Don't Fragment)비트라고 하며, 분할된 패킷이 없는 경우에 세팅된다.
- 2비트 : MF(More Fragment) 비트라고 하며, 하나의 데이터에서 분할된 조각들은 마지막 조각을 제외하고는 해당 비트를 설정하여 분할된 패킷이 더 있음을 알린다
7) Fragment Offset : 수신지에서 재배열하는 과정에서 각 조각의 순서를 파악하는데 사용된다.
8) Time to Live : 패킷수명을 제한하기 위해 데이터그램이 통과하는 최대홉수를 지정할 수 있다.
9) Protocol : IP헤더에 따라올 상위 프로토콜을 지정하는 것으로 TCP, UDP, ICMP 등을 확인 할 수 있다.
10) Header Checksum : 헤더의 오류를 검증하기 위해 사용
11) Source Address : 송신자 IP주소
12) Destination Address : 수신자 IP 주소
13) Option : 새로운 시럼 혹은 헤더 정보에 추가 정보를 표기 하기위해 설계됨

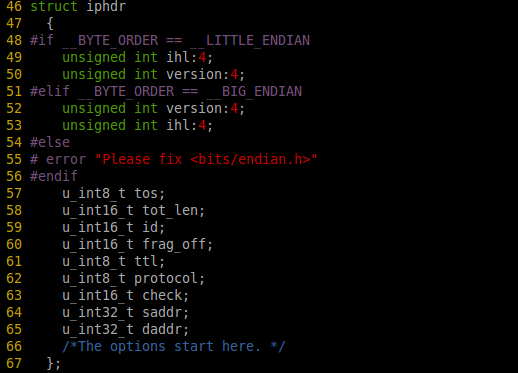

/usr/include/netinet/ip.h
소스 : ip_header.c
목적 : 이더넷 헤더의 IP 헤더출력
#include <pcap/pcap.h> #include <stdlib.h>
typedef struct mac_address { u_char byte1; u_char byte2; u_char byte3; u_char byte4; u_char byte5; u_char byte6; }mac;
#define ETHER_ADDR_LEN 6 struct ether_header { u_char ether_dhost[ETHER_ADDR_LEN]; u_char ether_shost[ETHER_ADDR_LEN]; u_short ether_type; }eth;
typedef struct ip_address { u_char byte1; u_char byte2; u_char byte3; u_char byte4; }ip_address;
typedef struct ip_header { u_char ip_leng:4; u_char ip_version:4; u_char tos; // Type of service u_short tlen; // Total length u_short identification; // Identification u_short flags_fo; // Flags (3 bits) + Fragment offset (13 bits) u_char ttl; // Time to live u_char proto; // Protocol u_short crc; // Header checksum ip_address saddr; // Source address ip_address daddr; // Destination address u_int op_pad; // Option + Padding }ip_header;
void packet_handler(u_char *param, const struct pcap_pkthdr *header, const u_char *pkt_data);
main() { pcap_if_t *alldevs; pcap_if_t *d; int inum; int i=0; pcap_t *adhandle; char errbuf[PCAP_ERRBUF_SIZE]; u_int netmask; char packet_filter[] = ""; // 사용자가 원하는 프로토콜 필터 정보를 넣을 수 있는 공간 struct bpf_program fcode; // 특정 프로토콜만을 캡쳐하기 위한 정책정보 저장
/* 네트워크 디바이스 목록을 가져온다. alldevs에 리스트 형래토 저장되며, 에러시 errbuf에 에러 내용을 저장한다. 에러시 에러문을 출력하고 프로그램 종료 */ if(pcap_findalldevs(&alldevs, errbuf) == -1) { fprintf(stderr,"Error in pcap_findalldevs: %s\n", errbuf); exit(1); }
/* pcap_findalldevs()함수를 이용하여 네트워크 디바이스정보를 출력한다. */ for(d=alldevs; d; d=d->next) { printf("%d. %s", ++i, d->name); if (d->description) printf(" (%s)\n", d->description); else printf(" (No description available)\n"); }
if(i==0) { //printf("\nNo interfaces found! Make sure WinPcap is installed.\n"); printf("\nNo interfaces found! Make sure LiPcap is installed.\n"); return -1; }
/* 캡쳐할 네트워크 디바이스를 선택한다. */ printf("Enter the interface number (1-%d):",i); scanf("%d", &inum);
/* 입력값의 유효성 판다. */ if(inum < 1 || inum > i) { printf("\nAdapter number out of range.\n");
pcap_freealldevs(alldevs); return -1; }
/* 사용자가 선택한 장치 목록을 선택 */ for(d=alldevs, i=0; i< inum-1 ;d=d->next, i++);
/* 실제 네트워크 디바이스 오픈 */ /* 디바이스명, 최대캡쳐길이, 모든패킷캡쳐, read time, 에러내용 저장변수 */ if((adhandle= pcap_open_live(d->name, 65536, 1, 1000, errbuf )) == NULL) { fprintf(stderr,"\nUnable to open the adapter. %s is not supported by WinPcap\n", d->name); pcap_freealldevs(alldevs); return -1; }
/* 패킷 필터링 정책을 위해 pcap_compile()함수 호출 사용자가 정의한 필터링 룰을 bpf_program 구조체에 저장하여 특정 프로토콜 패킷만 수집 */ if (pcap_compile(adhandle, &fcode, packet_filter, 1, netmask) <0 ) { fprintf(stderr,"\nUnable to compile the packet filter. Check the syntax.\n"); pcap_freealldevs(alldevs); return -1; }
/* pcap_compile() 함수내용을 적용하기 위해 pcap_setfilter() 함수가 사용된다. */ if (pcap_setfilter(adhandle, &fcode)<0) { fprintf(stderr,"\nError setting the filter.\n"); pcap_freealldevs(alldevs); return -1; }
// 디바이스 정보 출력 printf("\nlistening on %s...\n", d->description);
// 해제 pcap_freealldevs(alldevs);
/* pcap_loop() 함수를 호출하여 선택한 디바이스를 반복적으로 패킷을 캡쳐하는 역할을 한다. adhandle : 할당받은 디바이스 특성 0 : 무한르프 packet_handler는 이더넷 헤더를 출력하는 함수 */ pcap_loop(adhandle, 0, packet_handler, NULL);
return 0; } /* packet_handler() 함수 이더넷 헤더를 출력하기 위한 내용을 정의. */ void packet_handler(u_char *param, const struct pcap_pkthdr *header, const u_char *pkt_data) { /* 이더넷 헤더에서 ether_type(상위프로토콜 정보)은 이더넷 헤더 다음에 오는 프로토콜을 알려주는 값 */ #define IP_HEADER 0x0800 #define ARP_HEADER 0x0806 #define REVERSE_ARP_HEADER 0x0835
// int 형의 ptyep변수 선언 unsigned int ptype;
/* mac 구조체와 동일한 형태를 srcmac, destmac (srcmac 송신자의 MAC주소를 저장.) (destmac 수신자의 MAC주소를 저장.) */ mac* destmac; mac* srcmac;
/* 목적지 MAC주소를 저장할 수 있는 구조체인 destmac에 pkt_data(수집된 패킷정보가 저장되어 있으며, 제일 앞은 이더넷 헤더의 시작위치)를 저장. */ destmac = (mac*)pkt_data;
/* 발신자 MAC주소를 담을 수 있는 공간인 srcmac에 수집된 데이터의 시작시점인 pkt_data에서 6바이트 더한 값을 저장. 즉 송신자의 MAC주소가 저장 */ srcmac = (mac*)(pkt_data + 6);
/* 이더넷 헤더 정보를 담을 수 있는 공간인 ether_header구조체를 eth라고 별칭하였다. */ struct ether_header* eth;
/* 이더넷 헤더정보를 eth에 저장 */ eth=(struct ether_header*)pkt_data;
/* 다음에 따라오는 프로토콜 정보를 ntohs()함수에 넣어 변환을 시킨후 ptype에 저장 */ ptype=ntohs(eth->ether_type);
/* 구조체 ip_header를 ih로 별칭한다. */ ip_header *ih;
/* ih에 IP헫 정보를 저장한다. */ ih = (ip_header *)(pkt_data + 14);
printf("*************** Ethernet Frame Header *****************\n"); printf("\n"); printf("\n"); /* 발신지 MAC주소 출력 */ printf("Destination Mac Address : %02x.%02x.%02x.%02x.%02x.%02x \n", destmac->byte1, destmac->byte2, destmac->byte3, destmac->byte4, destmac->byte5, destmac->byte6 ); printf("\n"); /* 수신자 MAC 주소 출력 */ printf("Source Mac Address : %02x.%02x.%02x.%02x.%02x.%02x \n", srcmac->byte1, srcmac->byte2, srcmac->byte3, srcmac->byte4, srcmac->byte5, srcmac->byte6 ); printf("\n");
/* 다음 프로토콜 정보 출력*/ if(ntohs(eth->ether_type) == IP_HEADER) { printf("Upper Protocol is IP HEADER(%04x)\n",ptype); } else if (ntohs(eth->ether_type) == ARP_HEADER) { printf("Upper Protocol is ARP HEADER(%04x)\n",ptype); } else if (ntohs(eth->ether_type) == REVERSE_ARP_HEADER) { printf("Upper Protocol is REVERSE ARP HEADER(%04x)\n",ptype); } else { printf("Upper Protocol is Unknown(%04x)\n",ptype); }
printf("\n");
/* IP헤더에서 버전과 헤더 길이를 출력 */ if(ntohs(eth->ether_type) == IP_HEADER) {
printf("********************** IP Header ***********************\n"); printf("\n"); printf("\n"); printf("ip versioin is %d\n",ih->ip_version); printf("\n"); printf("ip lengh is %d\n",(ih->ip_leng)*4); printf("\n"); /* IP헤더에서 목적지 및 발신지 IP정보를 가리키고 있는 필드인 daddr, sadder의 정보를 이용하여 출력 */ printf("Destination IP Address : %d.%d.%d.%d \n", ih->daddr.byte1, ih->daddr.byte2, ih->daddr.byte3, ih->daddr.byte4 ); printf("\n"); printf("Source IP Address : %d.%d.%d.%d \n", ih->saddr.byte1, ih->saddr.byte2, ih->saddr.byte3, ih->saddr.byte4 ); printf("\n");
/* IP헤더 구조체에 필드 proto를 확인하면, IP헤더 다음에 따라오는 프로토콜 정보를 얻을 수 있다. 이를 이용하여 헤당 프로토콜를 출력 */ if(ih->proto == 0x06) { printf("Upper Protocol is TCP\n"); printf("\n"); } else if(ih->proto == 0x11) { printf("Upper Protocol is UDP\n"); printf("\n"); } else if(ih->proto == 0x01) { printf("Upper Protocol is ICMP\n"); printf("\n"); } else { printf("Upper Protocol is Unknown\n"); printf("\n"); } } else { printf("******************* NO IP Header *********************\n"); printf("\n"); printf("\n"); } printf("*******************************************************\n"); printf("\n"); printf("\n"); printf("\n"); printf("\n"); printf("\n");
} |
실행
gcc ip_header.c -lpcap
sudo ./a.out
- 결과 -
출처 : http://blog.naver.com/hjs20613?Redirect=Log&logNo=140188632025
